Smart Water Control Systems

Operation:

• Touch-free trigger by infrared hand detection

• Suitable for persons with reduced mobility (PRM), elderly, and children

• Detection range: 10-15cm

• Default setting for foam soap dispensing

• Switch to liquid soap dispensing by disconnecting the air pump and changing the nozzle (included with the product)

• Anti-waste function preventing soap flow after 4 hand passes in front of the sensor

Dispensed Volume:

• Soap or foam priming or refill activated by a short press on the button

• 0.5ml by default

• Adjustable by 1 long press on the button of the case to change the dosage: 0.5ml, 1 ml or 1.5ml

Capacity:

• 1L tank bottle attached to the case

• Easy refilling by unclipping the bottle

• Wide-neck bottle for easier filling

Compatible products:

• Usable for liquid soap et foam soap

• Viscosity liquid soap: 100 - 3000 mPa.s

Material and Finish:

• Stainless steel body

• Chrome Finish

• Housing made of technical polymer

Power supply:

• Mains-powered with 230V/6V transformer that plugs into a wall socket

Recommended installation:

• Recommended installation height at least 30 cm from the bottom of the basin

• Do not install in front of reflective surfaces (shiny plug, stainless steel basin)

• Box to be installed in an accessible place to facilitate filling of the bottle

• Option to offset the soap reservoir for liquid soap applications with an extension kit (not included)

Delivered with:

• 1L reservoir bottle

• Plug-in transformer

• Foam nozzle and liquid soap nozzle

Standards:

• 200 H salt spray resistant (NSS test) according to NF ISO 9227

• CE

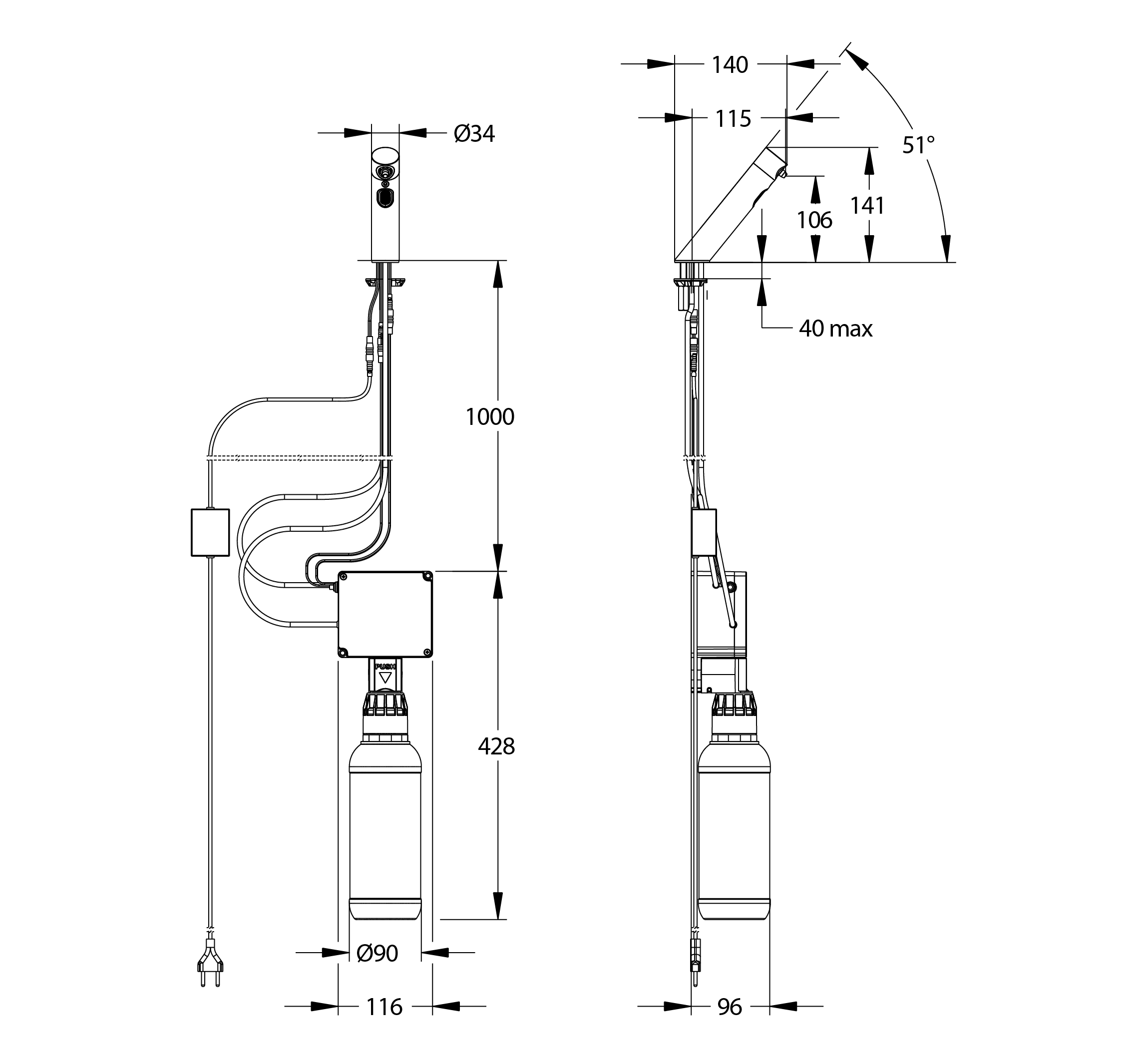

LINEA Deck-Mounted Liquid + Foam Sensor Soap Dispenser 1 L Plug-In Chrome Finish
